OD-11 OA-12 OA-14: crossover wiring and driver phasing

Post by arb »

Hello Carlsson fans,
You may want to check the following information:
http://www.faktiskt.se/modules.php?name ... 07#1312507
Regards,
ARB
Top
arb
(1+ posts)
(1+ posts)
Posts: 5
Joined: Fri 22 Oct 2010, 12:36

Re: OD-11 OA-12 OA-14: crossover wiring and driver phasing

Post by arb »

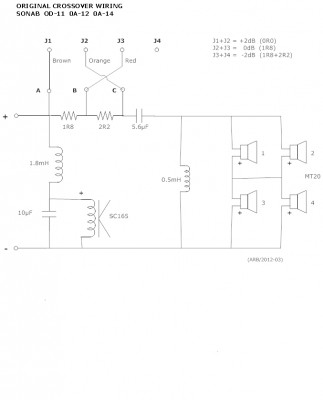

Here is my shot at redrawing the original schematics: not quite a work of art, but hopefully accurate.
ARB
Attachments
SONAB DELNINGSFILTER OD-11 OA-12 OA-14.JPG
Top
